4.6.1 Definition of a Potentiometer

A potentiometer is a variable resistor with three terminals. It can be used to produce a variable voltage that an Arduino can read through an analog input.

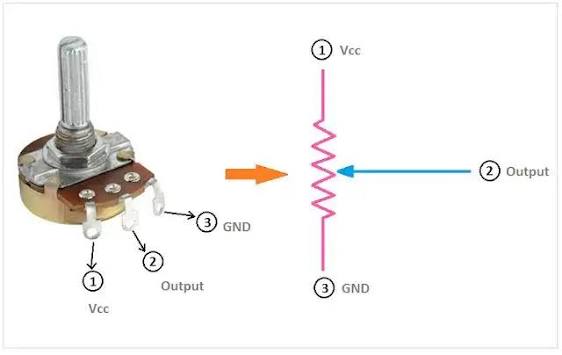

A typical potentiometer has:

1. VCC – connected to the supply voltage.
2. GND – connected to ground.
3. Wiper – connected to an Arduino analog input.

The wiper voltage changes as the knob is rotated.

4.6.2 Connecting a Potentiometer

A typical connection is:

Potentiometer Terminal	Arduino
First terminal	5V
Middle terminal	A0
Third terminal	GND

The exact direction of increase or decrease depends on which outer terminal is connected to 5 V.

4.6.3 Reading the Potentiometer

Example:

int potPin = A0;

int potValue;



void setup() {

  Serial.begin(9600);

}



void loop() {

  potValue = analogRead(potPin);



  Serial.println(potValue);



  delay(200);

}

As the potentiometer is rotated, the analog reading changes.

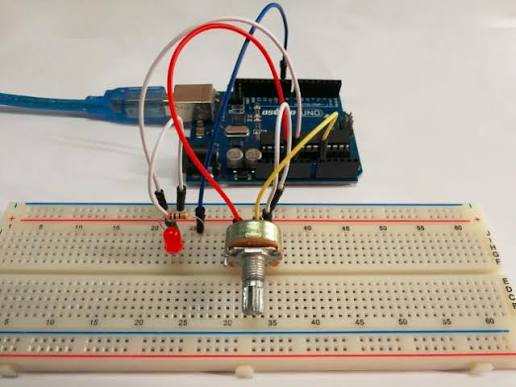

4.6.4 Using a Potentiometer to Control LED Brightness

A potentiometer can control the brightness of an LED.

int potPin = A0;

int ledPin = 9;



void setup() {

  pinMode(ledPin, OUTPUT);

}



void loop() {

  int potValue = analogRead(potPin);



  int brightness = map(potValue, 0, 1023, 0, 255);



  analogWrite(ledPin, brightness);

}

The map() function converts the potentiometer reading from the range 0–1023 into the PWM range 0–255.

How the System Works

Potentiometer → Analog Input → Arduino Processing → PWM Output → LED

When the potentiometer is rotated:

1. The potentiometer produces a different voltage.
2. The Arduino reads the voltage through A0.
3. The Arduino converts the reading into a numerical value.
4. The value is mapped to a PWM range.
5. The PWM signal controls LED brightness.
