5.2 OLED Display Interface

5.2.1 What is OLED?

OLED means Organic Light-Emitting Diode.

An OLED is a display technology in which individual pixels produce their own light. Unlike many conventional LCDs, an OLED does not require a separate backlight.

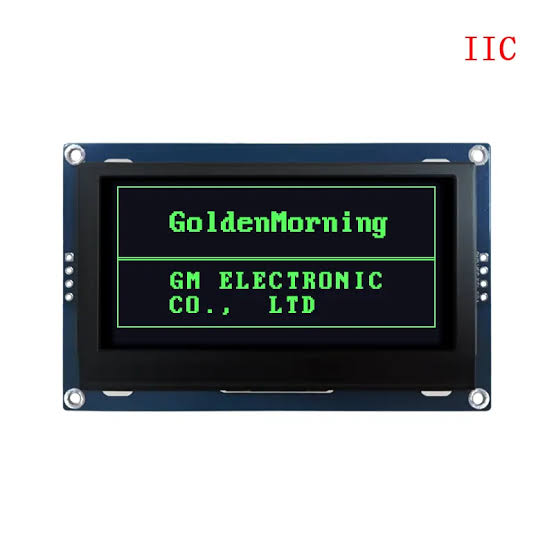

A popular Arduino OLED module is the:

0.96-inch 128×64 OLED display

This means it contains:

• 128 horizontal pixels
• 64 vertical pixels

5.2.2 OLED Interface

Many small OLED modules communicate with Arduino using I2C.

Typical pins are:

Pin	Function
VCC	Power
GND	Ground
SDA	Serial Data
SCL	Serial Clock

Some OLED displays use SPI instead of I2C.

5.2.3 How OLED Works

The Arduino sends commands and data to the OLED.

For example:

Sensor → Arduino → OLED → Displayed information

The OLED can display:

• Text
• Numbers
• Symbols
• Icons
• Simple graphics
• Sensor measurements
• Small diagrams

5.2.4 OLED Libraries

Common Arduino OLED libraries include:

Adafruit_GFX

Adafruit_SSD1306

The Adafruit_GFX library provides general graphics functions, while Adafruit_SSD1306 supports displays based on the SSD1306 controller.

5.2.5 Simple OLED Program

#include <Wire.h>

#include <Adafruit_GFX.h>

#include <Adafruit_SSD1306.h>



#define SCREEN_WIDTH 128

#define SCREEN_HEIGHT 64



Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);



void setup() {



  if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {

    while (true);

  }



  display.clearDisplay();



  display.setTextSize(1);

  display.setTextColor(SSD1306_WHITE);



  display.setCursor(0, 0);

  display.println(“Hello Student”);



  display.setCursor(0, 20);

  display.println(“Arduino OLED”);



  display.display();

}



void loop() {

}

5.2.6 Important OLED Functions

Function	Purpose
display.begin()	Initializes the OLED
display.clearDisplay()	Clears the screen buffer
display.setCursor()	Sets text position
display.setTextSize()	Sets text size
display.setTextColor()	Sets text color
display.print()	Displays information
display.println()	Displays information and moves to next line
display.display()	Sends the buffer contents to the OLED

Advantages of OLED

• High contrast
• Bright display
• Good viewing angle
• Low power for many applications
• Thin and compact
• Can display graphics
• Does not require a conventional backlight

Disadvantages of OLED

• Usually more expensive than basic character LCDs
• Some OLED materials can degrade over long periods
• Small modules have limited display area
• Programming graphics requires additional code

Applications of OLED

OLED displays are commonly used in:

• IoT devices
• Wearable electronics
• Smart sensors
• Portable instruments
• Digital meters
• Embedded systems
• Smart home devices
• Environmental monitoring systems
